F Series Outdoor
GLvision's outdoor fixed LED display,Available in 6mm-16mm.
TEL: +86 13510347963
Email: info@goodledvision.com
TEL: +86 13510347963
Email: info@goodledvision.com
GLvision's outdoor fixed LED display,Available in 6mm-16mm.
Item | Value |
|---|---|
| Pixel Pitch(mm) | 10 |
| Pixel Density(pixels/㎡) | 10000 |
| Pixel Configuration | DIP 1R1G1B |
| Brightness(nits) | 7000 |
| Viewing Angle(deg.) | 120(Horizontal), 60(Vertical) |
| Grey Level(bit) | 12/14/16 |
| Refresh Rate(Hz) | 1920/2880/3840 |
| Brightness Adjustment | Manual/ Auto/ Programmable |
| Module Dimension(mm) | 400(W)×240(H) |
| Module Dimension(inch) | 15.75(W) × 5.04(H) |
| Module Resolution(pixel) | 40x24 |
| Panel Material | Aluminum Profile |

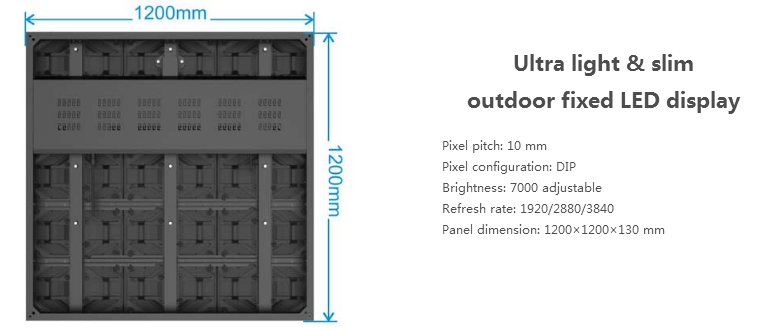

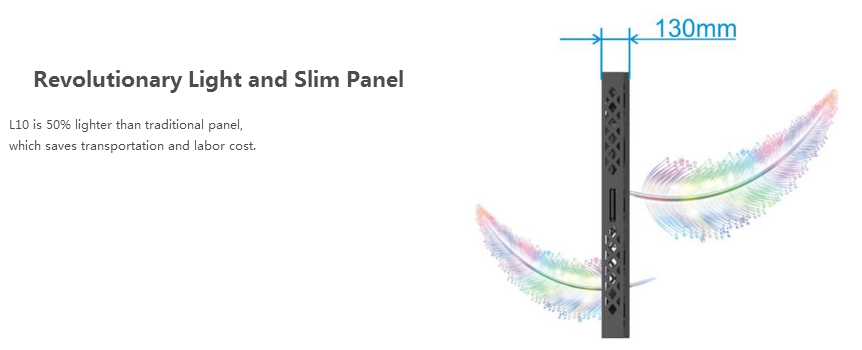

| Panel Size(mm) | 1200(W)×1200(H)×130(D) |
| Panel Size(inch) | 47.24(W)×47.24(H)×5.12(D) |
| Panel Resolution(pixels) | 120x120 |
| Panel Weight(kg) | 55 |
| Voltage(V) | AC 100~AC 240 |
| Avg. Power Consumption (W/㎡) | 105(AC) |
| Max. Power Consumption (W/㎡) | 420(AC) |
| Serviceability | Front/Rear |
| Protection Grade (Front/Rear) | IP65/IP54 |
| Operating Temp (℃)/Humidity (%RH) | -20~50/10~90 |
| Storage Temp (℃)/Humidity (%RH) | -40~60/0~90 |
| Lifetime (hours) | 100000(Normal Temp) |
| Compliant Standard | CE,FCC |
