F Series Indoor
GLvision'indoor fixed LED display,easy install and dismantle ,convenient maintain ,available in 3mm-6mm
TEL: +86 13510347963
Email: info@goodledvision.com
TEL: +86 13510347963
Email: info@goodledvision.com
GLvision'indoor fixed LED display,easy install and dismantle ,convenient maintain ,available in 3mm-6mm
Item | Value | |
|---|---|---|
| Pixel Pitch(mm) | 3.1 | |
| Pixel Density(pixels/㎡) | 102400 | |
| Viewing Angle(Deg.) | 160(H)/160(V) | |
| Brightness(nits) | 1000 | |
| Grey Level(bit) | 12/14/16 | |
| Refresh Rate(Hz) | 1920/2880/3840 | |

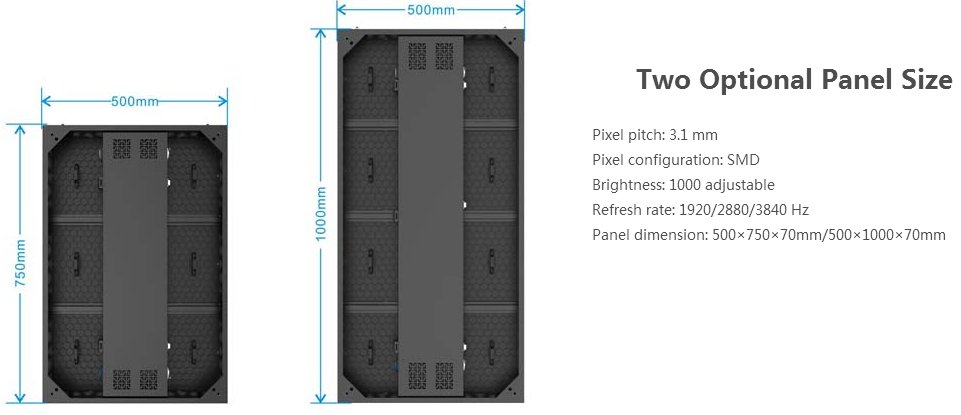

| Panel Size(mm) | 500(W)×750(H)×70(D) | 500(W)×1000(H)×70(D) |
| Panel Size(inch) | 19.68(W)×29.53(H)×2.75(D) | 19.68(W)×39.37(H)×2.75(D) |
| Panel Resolution(pixels) | 160 ×240 | 160×320 |
| Panel Weight(kg/㎡) | 27-35 | |
| Panel Type and Material | Iron | |
| Module Size(mm) | 250(W)×250(H) | |
| Module Size(inch) | 9.84(W)×9.84(H) | |
| Module Resolution(pixels) | 80×80 | |
| Protection Grade | IP20 | |

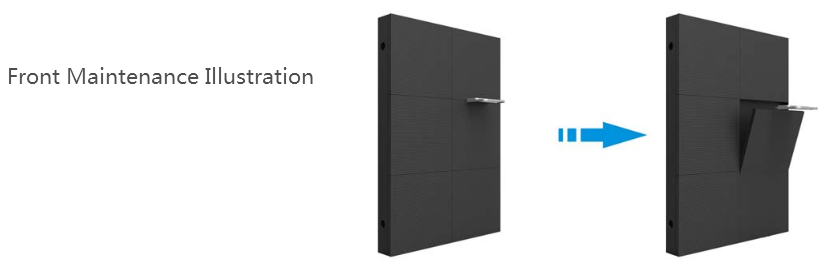

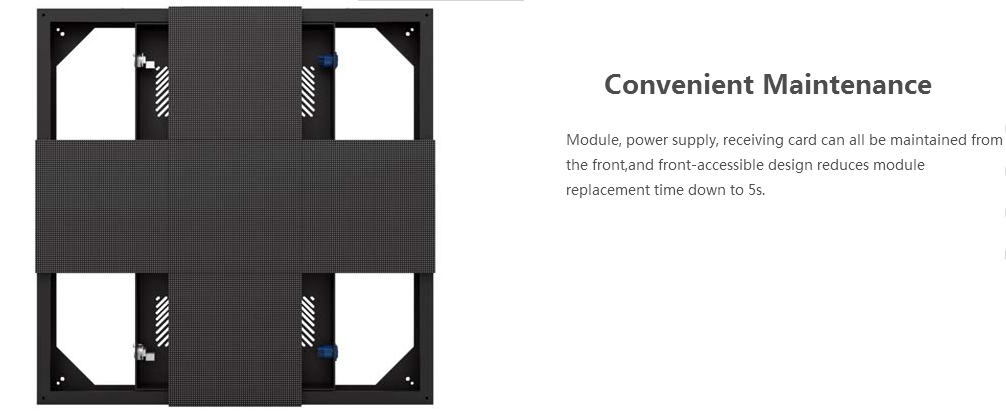

| Serviceability | Front/Rear | |
| Avg.Power Consumption(W/㎡) | 135(AC) | |
| Max.Power Consumption(W/㎡) | 540(AC) | |
| Brightness Adjustment | Manual/Auto/Programmable | |
| Operating Temp/Humidity(℃/%RH) | -20~+50/10~90 | |
| Storage Temp/Humidity(℃/%RH) | -40~+60/0~90 | |
| Lifetime(hours) | 100000 | |
| Compliant Standard | CE,FCC,RoHS | |
